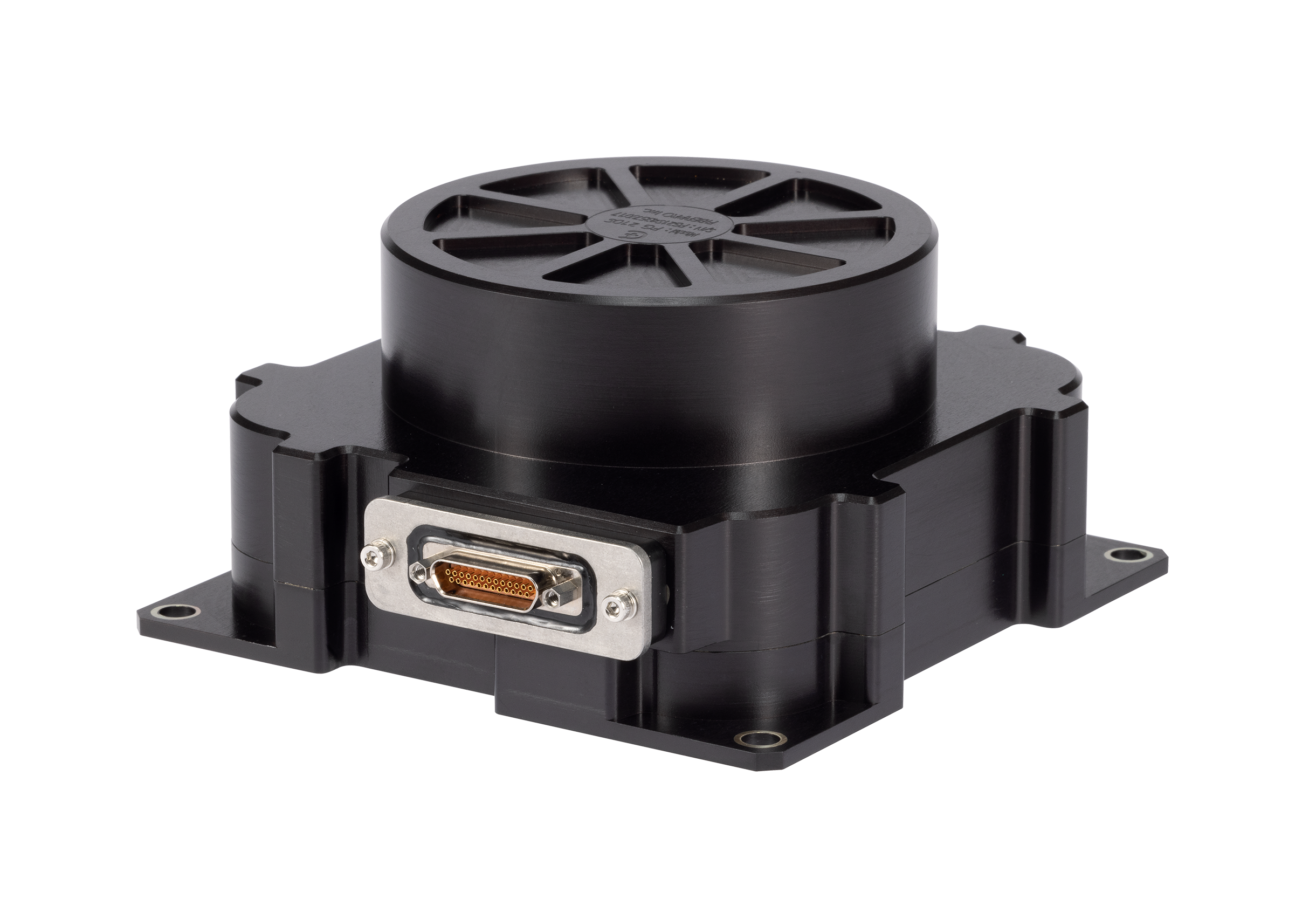

SAG-SS

Single Axis Fiber Optic Gyroscope for space grade

  • 1 axis Fiber Optic Gyroscopes
  • Bias Repeatability: 0.1°/hr
  • Bias Stability: 0.02 °/h (1,000 sec)
  • Angle Random Walk: 0.005 °/√hr
  • Scale Factor Accuracy: 500 ppm
  • Operating Voltage: 5 V (1 A)
  • Interface: RS422
  • Weight: 1.0 kg
  • EMC: MIL-STD-461E
    • Request Quote Catalog

    Description

    The SAG-SS is a high performance space-grade fiber optic gyroscope with one axis satellite measurement of the rotation with a very high reliability level. One box includes one gyro composed of interferometer, and its relevant electronics. The SAG-SS is designed to operate with the worst radiation environment. The SAG-SS uses low power consumption requiring single voltage at 5V and is fully compliant to MIL-STD-461E.

    Dimensions

    Application

    • Satellite
