FN 205 - INS/GNSS Receiver | FIBERPRO Fiber Sensing Systems

Products

FIBERPRO provides various sensing systems by leveraging fiber optic technology to offer a
comprehensive range of measurement solutions, encompassing temperature, displacement, pressure,
acceleration, and more. Explore our diverse product portfolio in each specialized field.

FOG & Inertial system

FN 205

INS/GNSS Receiver

  • Heading Accuracy: 0.5° · sec(LAT)
  • Roll & Pitch: 0.1° RMS
  • Operating Voltage: 9 to 36 VD
  • Data Output Rate: Up to 200 Hz
  • Operating Temperature: -20°C to +55°C
  • Weight: 3.5 kg
  • Interface: RS-422
    • Request Quote Catalog
    FN 205 - Advanced INS/GNSS Receiver for industrial monitoring, infrastructure monitoring

    Description

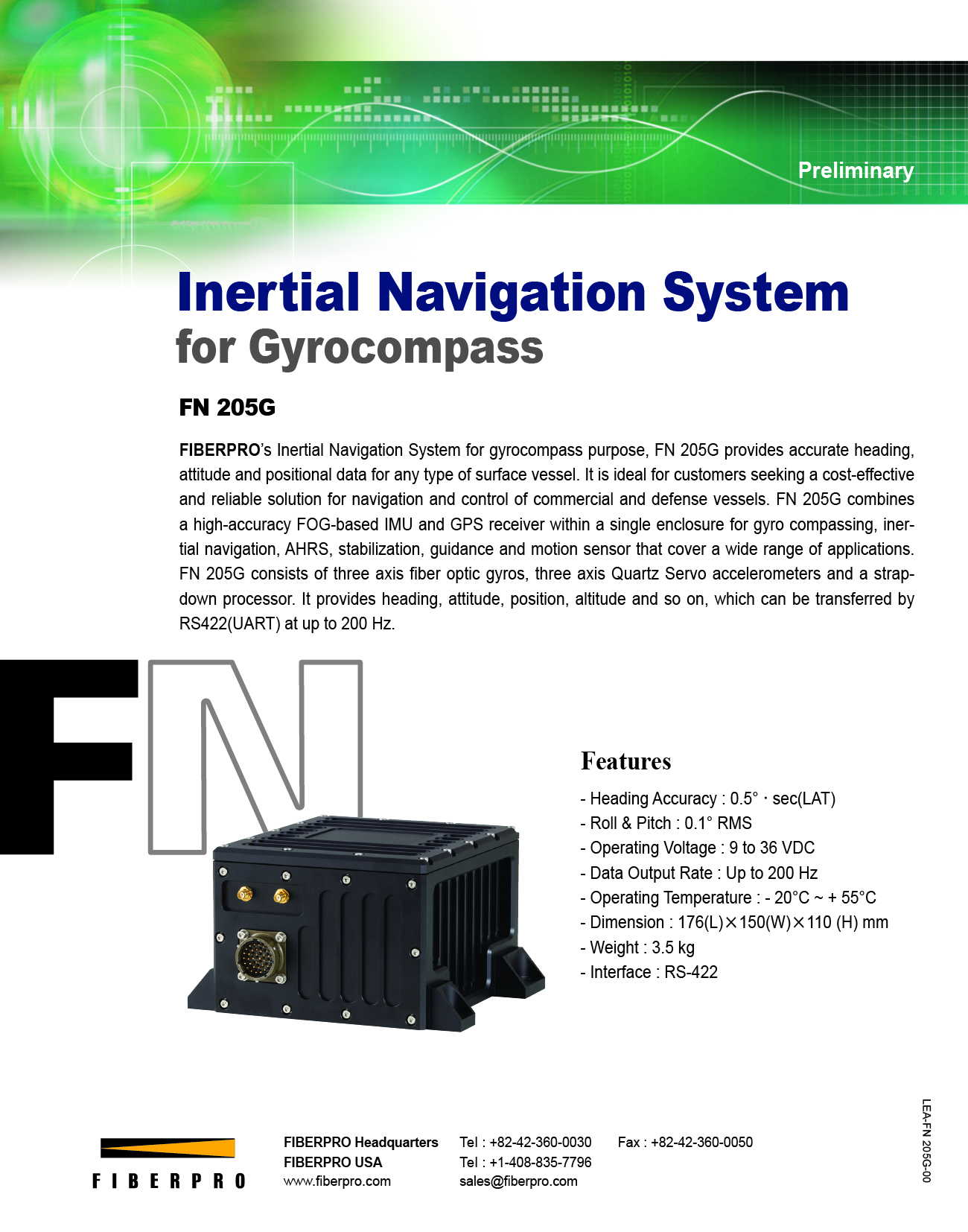

    FIBERPRO’s Inertial Navigation System, FN 205G, provides accurate heading, attitude, and positional data for navigation and attitude reference applications. It is ideal for customers seeking a cost-effective and reliable solution for navigation and control in commercial and defense fields. FN 205G integrates a high-accuracy FOG-based IMU with a GNSS receiver, with the option to combine it with Anti-jamming GNSS for enhanced resilience in contested environments. It supports inertial navigation, AHRS, stabilization, guidance, and motion sensing across a wide range of applications. The system consists of three axis fiber optic gyros, three axis Quartz Servo accelerometers, and a strap-down processor. It provides heading, attitude, position, altitude, and more, which can be transferred via RS422 (UART) at up to 200 Hz.

    Dimensions

    - Dimensions: 176(L) × 150(W) × 110(H) mm

    Application

    • Unmmand Aerial Vehicle(UAV)
    • Guided Weapon System
    • Surface Vessel
